The Superflat bathroom drain
DN 50, Slotted grating
![](https://assets.kessel.de/pb/640/pb_wgablau_4270120_172678.png)

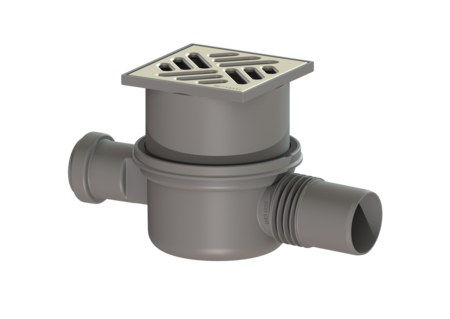

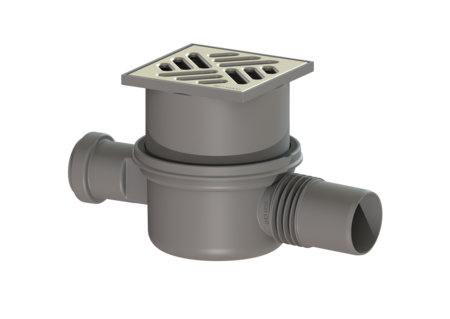

KESSEL The Superflat bathroom drain, length 250 mm, drainage by Point drain, type of cover Slotted cover, design cover
- Movable outlet socket
- Lip seal fixed on the drain body
- Side inlet via odour trap
Item no. | 42701.20 |
---|---|
GTIN | 4026092028537 |
Price group | 10 |
The Superflat bathroom drain DN 50, Slotted grating
The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Variant Position of lateral connection: Type II Sealing water height: 30 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Vertical adjustment: 10 - 60 mm Net weight: 0,41 kg Gross weight: 0,5 kg Min. design height: 90 mm Cutout dimension, width: 180 mm Cutout dimension, length: 260 mm Type of height adjustability: vertically adjustable upper section Length: 250 mm Width: 110 mm Packaging dimension: length: 250 mm Packaging dimension: width: 107 mm Packaging dimension: height: 140 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 mm Number of inlets: 1 Material of drain body: PP Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 100 mm Length of cover: 100 mm Surface: Polished SST Frame material: PP Locking: placed Load class: K 3 (EN 1253-1) Rim width: 107 mm Rim length: 107 mm Shape of upper section: square Upper section material: PP
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Adapter DN 50/40 | 27118 | Show |
![]() | Adapter DN 50/70 | 27126 | Show |
![]() | Extension section System 100, H: 161 mm | 27146 | Show |
![]() | Sludge bucket d: 110 mm | 27168 | Show |
![]() | Extension section System 100, with pressure sealing flange | 27198 | Show |
![]() | Extension section System 100, with glued flange | 27199 | Show |
![]() | Odour trap Multistop, System 100 | 43500 | Show |
![]() | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
![]() | Membrane 500 x 500 mm | 43710 | Show |
![]() | Membrane EPDM, 500 x 500 mm | 43730 | Show |
![]() | Intermediate section with system 100 glued flange | 47900 | Show |
CAD Data |
---|
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
PP
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
PP
- Type of cover (abdeckungsart): Slotted cover
