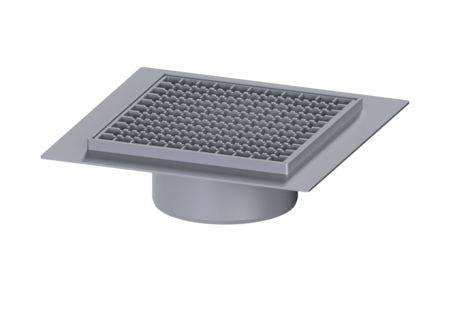

Ferrofix upper section gl. flange

Sys200 slot grat, 304SST, 300 x 300 mm

57415-KF
PDF product data sheet

KESSEL Ferrofix upper section gl. flange, height 112 mm, length 300 mm, width 300 mm, type of cover Slotted cover, locking unlocked, design cover

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 57415-KF
GTIN 4026092095287
Price group 70

    Ferrofix upper section gl. flange Sys200 slot grat, 304SST, 300 x 300 mm
    Used in combination with a drain body of the KESSEL modular system 200, the Ferrofix stainless steel upper section with glued flange is suitable for indoor point drainage. Variant System: 200 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 4,2 kg Gross weight: 4,65 kg Type of height adjustability: vertically adjustable upper section Length: 400 mm Width: 400 mm Height: 112 mm Packaging dimension: length: 440 mm Packaging dimension: width: 440 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 300 mm Rim length: 300 mm Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
