Grease separator EasyClean free
NS 10, Mix & Pump, SonicControl
![](https://assets.kessel.de/pb/640/pb_wgabsch_9301002ms_7908.png)

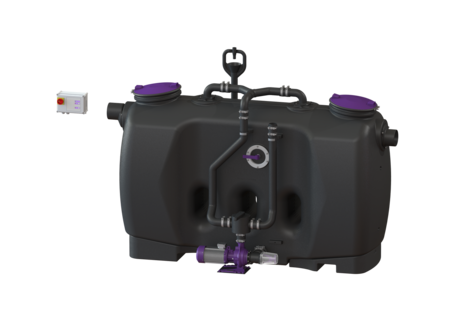

KESSEL Grease separator EasyClean free, disposal Mix & Pump, Set-up area, width 1108 mm, nominal size 10, control unit yes, free-standing installation, type of disposal manual disposal and cleaning system, yes
- Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
- Clean and odour-free disposal and cleaning
- Simple control
Item no. | 93010.02/MS |
---|---|
GTIN | 4026092065051 |
Price group | 60 |
Grease separator EasyClean free NS 10, Mix & Pump, SonicControl
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and change lever which can be disconnected from the tank by a shut-off valve. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. Manual control is carried out by a user-friendly control unit that can be integrated into the building management system through a potential-free contact. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 10 SonicControl: yes Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: manual disposal and cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 270 kg Gross weight: 305 kg Set-up area, length: 2822 mm Set-up area, width: 1108 mm Set-up area, height: 1932 mm Required access area, length: 2590 mm Required access area, width: 940 mm Required access area, height: 1678 mm Packaging dimension: length: 2850 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 1700 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1185 mm Distance pipe bottom inlet to tank bottom: 1255 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 900 l Total volume: 1900 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: no Self-diagnosis system (SDS): yes Rated current: 6,2 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Sampling system DN 100/150, Vertical outlet | 915870 | Show |
![]() | Sampling system DN 100/150, Horizontal outlet | 915871 | Show |
Access panel for mounting on-wall | 917413 | Show | |
Access panel for in-wall installation | 917414 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. | ||
---|---|---|---|
![]() | Seal DN 150 | 680003 | Show |
![]() | Hose clamp d: 110 mm | 680126 | Show |
![]() | Seal DN 200 | 680128 | Show |
![]() | Screw 10x3, A2 | 680164 | Show |
![]() | Valve 2-way redistributor, with lever | 680274 | Show |
![]() | Shut-off valve DN 100, polymer, horizontal | 680329 | Show |
![]() | Control unit Mix & Pump, 6.5, 7.5 and 10 A | 680341 | Show |
![]() | Flexible coupling DN 100, L: 100 mm | 680434 | Show |
![]() | Inlet socket for grease separator NS 7-10 | 680436 | Show |
![]() | Outlet socket for grease separator NS 7-10 | 680438 | Show |
![]() | Inlet/outlet structure for grease separator NS 2-10 | 680439 | Show |
![]() | Flexible coupling with hose clamps, DN 75, L: 100 mm | 680555 | Show |
![]() | Adapter for pump, Euro grease separator | 680590 | Show |
![]() | EasyClean Inspection Window | 913109 | Show |
![]() | Cover d: 420 mm, from 04/2004 | 916904 | Show |
![]() | Clamp fastener for cover 420 mm, up to 04/2004 | 917004 | Show |
![]() | Seal for cover d: 420 mm | 917204 | Show |
![]() | Radial impeller | 917854 | Show |
![]() | Cutting plate for pump 3,0 kW | 917855 | Show |
![]() | Replacement pump SPF 300 KE 2.0 Homogeniser, 3,0 kW | 917856 | Show |
Manuals | |
---|---|
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- Material (material):
PE
- CE marking (ce_kennzeichnung):
yes
- Control unit (schaltgeraet):
yes
- Cover material (abdeckung_material):
Polymer
- Disposal system (entsorgungseinrichtung):
Disposal pump
- Installation situation (einbausituation):
free-standing installation
- Shredder-Mix-System (schredder_mix_system):
yes
- Nominal size (NS) (nenngroesse): 10
- Sludge bucket (schauglas): yes
- Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
- Set-up area, width (aufstellflaeche_breite): 1,108 mm
- Set-up area, length (aufstellflaeche_laenge): 2,822 mm
